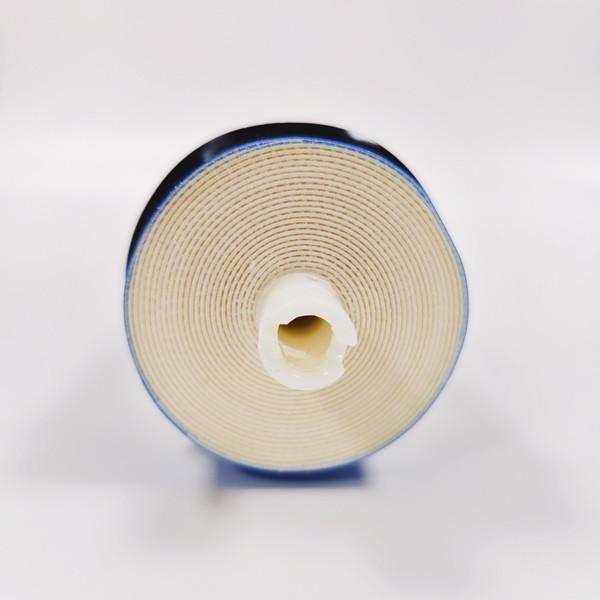

Domestic / Commercial BW 3013 - 500 Gpd High Flow RO Membrane
The reverse osmosis membrane is widely used in electric power,
petrochemical industry, steel, electronics, medicine, food and
beverage, municipal and environmental protection and other fields.
It plays an important role in seawater and brackish water
desalination, boiler water supply, industrial pure water and
electronic grade ultra pure water preparation, drinking water
production, wastewater treatment and special separation processes.
The reverse osmosis membrane can intercept various inorganic ions,
colloidal substances and macromolecular solutes in the water, so as
to obtain purified water. It can also be used for pre-concentration of macromolecular organic
matter solutions. Due to the simple process of reverse osmosis and low energy
consumption, it has developed rapidly in the past 20 years. It has been widely used in seawater and brackish water (see brine)
desalination, boiler water softening and wastewater treatment, and
combined with ion exchange to produce high-purity water. and separation and concentration of biological agents.
Product Description
| Model | 3012-500 |
| Operation Pressure (psi) | 90 |
| Highest Operation Pressure (psi) | 100 |
| Application | For Pure water producing |
| Test Solution Concentration (ppm) | 250 |
| Recovery Rate % | 50%±5 |
| Stable Rejection Rate % | 97 |
| Flow Rate (GPD) | 500 |
| Max. Pressure Difference (psi) | 15 |
| Max. Feed Water SDI | 5 |
| Acceptance capacity of free Chlorine | ≤0.1 |
| PH Range of feed water as continious operation | 2-11 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 150psi(10bar) |
| Maximum Feed Flow | 2.0gpm(7.6lpm) |
| Continuously operating PH range a | 2-11 |
| Short wash PH range (30min) b | 1-13 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
Note:1. The Max. continous operation temperature is 35ºC when PH
rate over 10.
2. In certain conditions,if would cause membrane breakage if the
free chlorine or the other oxidant in feedwater.The production
quality guarantee range is notincluded membrane breakage by
oxiadation.
Procedures
FAQ:
Q: How to buy your products?
A: we need some essential information include sewage sources,
sewage quality ( COD, BOD,SS),Required Filtered water quality,
designed technological process, site engineering conditions
(contact us for details),then we will design the uitable solutions
for you and prepare to give you best price.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30%
deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will
be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also
provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
