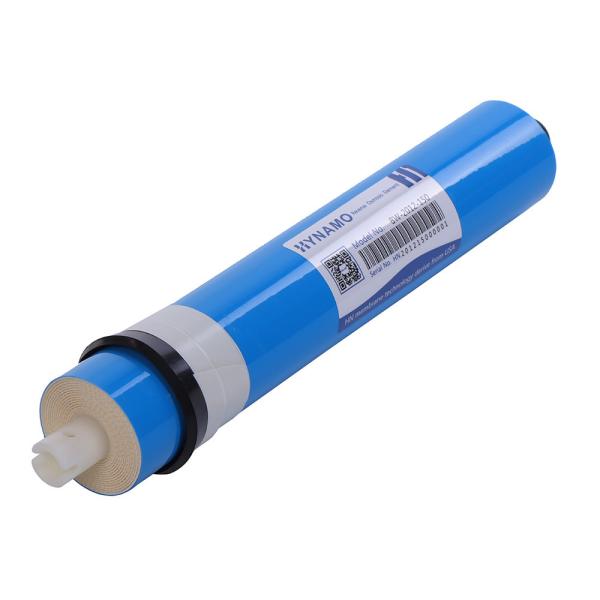

Widely Used 150G Water Purifier Spare Parts Reverse Osmosis
Membrane RO Water Filter
Domestic RO membrane elements are spiral wound, composite polyamide
membrane elements for Tap Water and Well Water treatment in low
salinity application. These membranes are characterized by a very
low operating feed pressure, normally is from 65psi(0.45MPa) and
result in higher salt rejection rate, above 96%. These membranes
are designed for domestic/commercial water treatment applications,
such as the treatment of low salinity waters for home, residence,
hospital, laboratory, shop, store,......
Performance
| TYPE | BW-1812-50 | BW-2012-75 | BW-2012-100 | BW-2012-150 |
| Rejection Rate | 97% | 97% | 97% | 96% |
| Permeate Flow GPD(m³) | 50(0.19) | 75(0.28) | 100(0.38) | 150(0.57) |
| Test Pressure | 60psi(0.41MPa) | 70psi(0.5MPa) |
| Max. Feedwater TDS | 1000 |
| PH Rate Rang of Operation | 3-10 |
| Max. Operation Temperature | 45ºC |
| Recovery Rate of Single Membrane | 15% |
Membrane Dimention
| Model No. | A(Inch/mm) | B(Inch/mm) | C(Inch/mm) | D(Inch/mm) | E(Inch/mm) |
| BW-1812-50 | 11.74/298 | 1.70/44 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-75 | 11.74/298 | 1.75/45.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-100 | 11.74/298 | 1.8/46.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-150 | 11.74/298 | 1.9/48 | 0.68/17 | 0.87/22 | 10.0/254 |
- When PH is above 10, the Maximum Temperature of Continuous
Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other
oxidants in the water may cause serious membrane damage, which
doesn't belong to product warranty range.
Our membrane elements are widely used in water treatment and
material separation. The special design of the cover ,and the wider
gridding ensure to improve the impact resistant and antipollution
property. Besides, strict management system combine with inspection
system of core technology remains stable for membranes.
FAQ:
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30%
deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be
higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also
provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
