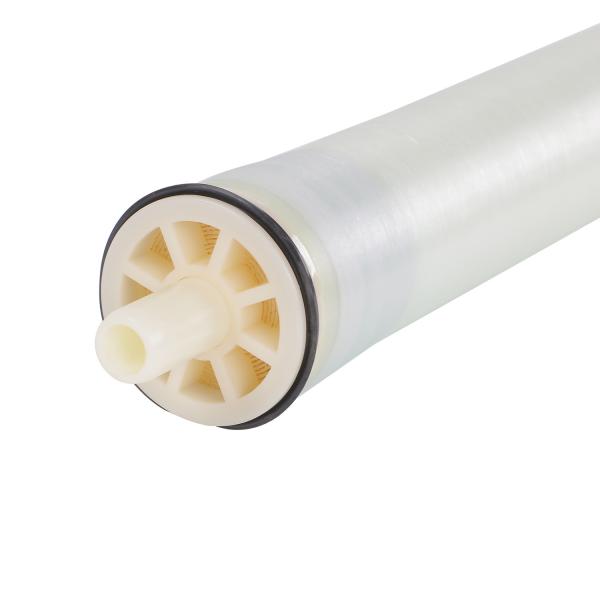

Commercial Reverse Osmosis RO Membrane for Water Treatment System
Commercial reverse osmosis membrane elements are widely used in
electric power, petrochemical, steel, pharmaceutical, food and
beverage, municipal and environmental protection fields. It plays
an important role in seawater desalination and brackish water
desalination, boiler water supply, industrial pure water and
electronic ultrapure water equipment, drinking pure water,
wastewater treatment and special separation processes.
| Model Number | Description | 2521-ULP |
Performance &
Test Condition | The Desalination Rate % | 99% |
| Water Rate GDP | 300 |
| The Test pressure | `150si |
| Test solution Temperature | 25± 1ºC |
| Test Solution Concentration NaCl | 1500PPM |
| Recovery Of Single-Branch Membrane Element | 8% |
| Feed water SDI | 5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 2-11 |
| Short wash PH range (30min) b | 1-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
- When PH is above 10, the Maximum Temperature of Continuous
Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other
oxidants in the water may cause serious membrane damage, which
doesn't belong to product warranty range.
Commercial RO system can be customized based on individual design
needs to include chemical dosing, cleaning skids, antiscalant,
filters and more.
FAQ:
Q: How to buy your products?
A: we need some essential information include sewage sources,
sewage quality ( COD, BOD,SS),Required Filtered water quality,
designed technological process, site engineering conditions
(contact us for details),then we will design the uitable solutions
for you and prepare to give you best price.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30%
deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will
be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also
provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have ISO9001, OHSAS18001, ISO14001 Certifications.
