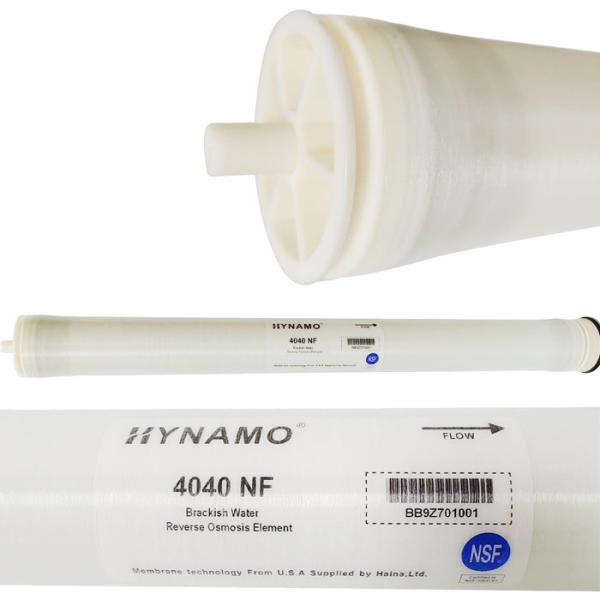

4040 Nanofiltration Membrane Water Treatment Membrane for Water
Filtration System
| Model Number | Description | 4040-NF |
Performance &
Test Condition | The Desalination Rate % | 98% |
| Water Rate GDP | 1800 |
| The Test pressure | 100psi |
| Test solution Temperature | 25± 1ºC |
| Test Solution Concentration NaCl | 2.0-11.0 |
| Recovery Of Single-Branch Membrane Element | 15% |
| Feed water SDI | 5 |
| TYPE | Production Flow Rate GPD(m³/d) | Stable Rejection Rate | Operation Pressure | Recovery Rate |
| 4040-LP | 2400(9.1) | 99.5% | 225 psi (15bar) | 15% |
| 4040-ULP | 2400(9.1) | 99.2% | 150 psi (10bar) | 15% |
| 4040-XLP | 2400(9.1) | 98.5% | 100 psi (7bar) | 15% |
| 8040-LP | 10500(40) | 99.5% | 225 psi (15bar) | 15% |
| 8040-ULP | 10500(40) | 99.2% | 150 psi (10bar) | 15% |
| 8040-XLP | 10500(40) | 98.5% | 100 psi (7bar) | 15% |
- When PH is above 10, the Maximum Temperature of Continuous
Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other
oxidants in the water may cause serious membrane damage, which
doesn't belong to product warranty range.
The principle of nanofiltration is the same as that of membrane
separation processes such as ultrafiltration and reverse osmosis.
Nanofiltration is also a membrane separation process driven by
pressure difference, which is an irreversible process. The separation mechanism can be described by the charge model
(space charge model and fixed charge model), pore model, and
electrostatic repulsion and steric hindrance models that have only
been proposed in recent years. Compared with other membrane separation processes, an advantage of
nanofiltration is that it can retain small molecular weight
organics that pass through the ultrafiltration membrane, and can
dialyze some of the inorganic salts retained by the reverse osmosis
membrane—that is, it can synchronize "concentration" and
desalination. conduct.
FAQ:
1. Q: Are you manufacturer?
A: Yes, we are manufacture founded in 2005.
2. Q: What's your main products?
A: We provide Residential, Commercial and Industrial water
treatment as well as relevant spare parts.
3. Q: Do products have any certifications?
A: Yes, all products are CE NSF certified. Some even ISO certified.
4. Q: Can you provide samples?
A: Yes, We can support providing sample service.
5. Q: How long does production take?
A: Sample order within one week; large order takes 15 to 25 days.
6. Q: How long is the warranty?
A: Warranty 1 year for domestic membrane and 3 years for industrial
membrane.
7. Q: What's the payment item?
A: T/T, L/C, Paypal, D/P and etc,.
8. Q: Is OEM available?
A: Yes, welcome OEM.
