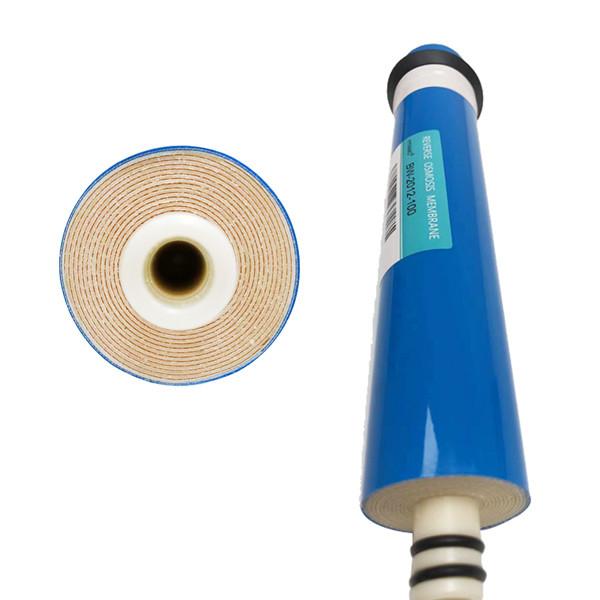

Hynamo Household Reverse Osmosis Ro Membrane 100gpd for Water
System
An RO membrane is composed of three layers: a bottom layer made of unwoven polyester cloth of thickness
100–200 μm to support the entire membrane, a middle layer
consisting of polysulfone (PSF) or polyethersulfone (PES) of
thickness 30–50 μm, and a top layer of polyamide (PA) or
polyetherimide (PEI), supported by PSF.Most commonly used RO membranes are typically composed by a thin
film composite membrane consisting of three layers: a polyester support web, a microporous polysulfone interlayer and
an ultra think polyamide barrier layer on the top surface.
DIMENSIONl:
2012-100: A:11.74inch B:1.8inch C:0.68inch D:0.87inch E:10.0inch
1.When PH is above 10, the Maximum Temperature of Continuous
Operation is 35ºC.
2. Under certain conditions, the presence of free chlorine and
other oxidants in the water may cause serious membrane damage,
which doesn't belong to product warranty range.
SPECIFICATION:
| Model | 1810 - 50 1812 - 50 | 1810 - 75 2012 - 75 | 1810 - 100 2012 - 100 | 2012 - 125 | 2012 -150 | 2012 - 200 |
| Perfor-mance | Stable Desalination % | 97 | 97 | 97 | 97 | 97 | 97 |
| Min. Desalination % | 96 | 96 | 96 | 96 | 96 | 96 |
| Mean Permeable Flow GPD (L/d) | 50 (204) | 75 (281) | 100 (380) | 125 (478) | 150 (567.75) | 200(760) |
| Active Film Area ft2(m2) | 3.5 (0.32) | 4.2 (0.38) | 5.0 (0.46) | 5.0 (0.50) | 6.0 (0.8) | 10.33 (0.96) |
| Test Conditions | Pressure | 65psi (0.45Mpa) |
| Water Temp. | 25℃ |
| Concentration(NaCl) | 500ppm |
| Water PH | 6.5 to 7.5 |
| Recovery Rate % | 15 |
| Operating Conditions | Max. Operating Pressure | 300psi (2.0Mpa) |
| Max. Feed Water Temp. | 45℃ |
| Max. Feed Water Silt Density Index (SDI) | 5 |
| Feed Water Chlorine Tolerance | < 0.1 mg/l |
| Feed Water PH Range, Continuous Operation | 3 to 10 |
| Feed Water PH Range, Short-Term Cleaning | 2 to 11 |
| Max. Pressure Drop of Single Membrane | 10psi (0.07Mpa) |
Our Service:
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or
design is available.
3.Good Quality + Factory Price + Quick Response + Reliable Service,
is what we are trying to offer.
4.All of our products are produced by our professional workers and
we have our high-work-effect foreign trade team, you can totally
believe our service.
After you choose
1. We will count cheapest shipping cost and make invoice to you at
once.
2. Check quality again, then send out to you within 7 working days
after your payment
3. Email you the tracking No., and help to chase the parcels until
it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price
and products.
2.If you have any question,please contact us freely by E-mail or
Telephone.
FAQ:
Q1: Are you a trading company or a manufacturer?
A1: We are a professional manufacturer of RO membrane and membrane
sheet with 18 years experience in the industry.
Q2: How can we guarantee quality?
A1: We have a pre-production sample before mass production&final Inspection before shipment; Our products are certified.And we
can supply NSF,ISO9001,CE certification.
Q3: How to make payment ?
A3: We accept payment by L/C, T/T, Western Union, Money Gram, Trade Assurance, etc
Q4: Can you provide brand customization and packaging customization?
A4: Yes, OEM and ODM are available based your demand.
