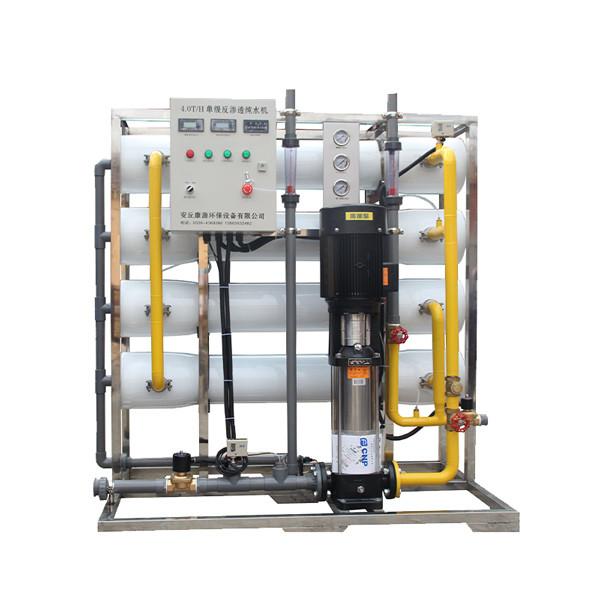

4000 LPH Ss Water Purifier Ro Plant For Agriculture Home Use Drinking Water

Ask Lasest Price
Brand Name :	OEM/ODM
Model Number :	4T RO Plant
Certification :	CE, RoHS, ISO9001, NSF
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3000 PCS /Month
Delivery Time :	depend on quantity

Add to Cart

Product Details
Company Profile

4000 LPH Ss Water Purifier Ro Plant For Agriculture Home Use Drinking Water

4000 LPH Water Filter Water Purified System RO Plant for Drinking Water

Product Description

Serial Number Equipment Name Technical Parameters Model Unit Quantity Material
A pretreatment
1 Raw water pump Q=8m3/h, P=0.34MPa, N=1.5kW CHM8-4 units 1 SS304
1.1 Pipeline inlet pressure gauge Measuring range: 0-1.0MPa YN60 units 1
2 Multi-media filter ∮750*1850 ∮750 sets 1 FRP
2.1 Automatic multi-way valve Q=10m³/h TMF75A set 1 ABS
2.2 Distributor up and down 182L+6600 sets 1 ABS
2.3 Instrument: pressure gauge Measuring range: 0-1.0MPa YN60 1 UPVC
2.4 Body pipe DN40, PN1.0 DN40 set 1 PVC
3 Activated carbon filter ∮750*1850 ∮750 units 1 FRP
3.1 Automatic multi-way valve Q=10m³/h TMF75A set 1 ABS
3.2 Distributor up and down distribution 182L+6600 sets 1 ABS
3.3 Instrument: Pressure gauge Measuring range: 0-1.0MPa YN60 1 SS304
3.4 Body pipe DN20, PN1.0 DN20 1 PVC
4 Dosing device 2L/H, 40L medicine box set 1 combination
Second, reverse osmosis system
1 Security filter Q=10m3/h, precision 5μm 40" set 1 Ss304
1.1 filter element 40", precision 5μm 40" 7 PP
1.2 pressure gauge measuring range: 0-1.0MPa Y60 2 SS304
2 High pressure pump Q=8m3/h, P=1.3MPa, N=5.5kW CDL8-14 sets 1 SS304
3 Reverse osmosis device Q=4m3/h, recovery rate 65%, Aibeier-4 sets 1
3.1 Reverse osmosis membrane element 8" RO membrane 8040-ULP 4 TFC
3.2 Membrane housing 300PSI, with 2 membranes 8040-2 inside 2 FRP
3.3 Reverse osmosis device meter set 1
Pipeline water flow meter 35GPM LZM-35 set 1 plexiglass
Pipeline concentrated water flow meter 35GPM LZM-35 set 1 plexiglass
Pipeline pressure gauge Measuring range: 0-3MPa YN60 2 SS304
Low-pressure pressure switch Lower than 0.1Mpa water system main engine shutdown BD-A 3 sets 1 combination
Water production conductivity meter Measuring range: 0-2000us/cm CCT3320V unit 1 combination
Controller RO-2015 unit 1 combination
3.4 RO frame 50*50*2.5 2500*900*1500 set 1 stainless steel
3.5 Piping and manual valve DN32-40 group 1 PVC
3.6 Control valve:
Inlet stop valve DN40, SS304 DN40 1 SS304
Concentrate stop valve DN32, SS304 DN32 1 SS304
Inlet solenoid valve DN40, brass DN40 1 brass
Concentrated water discharge solenoid valve DN32, brass DN32 set 1 brass

Max Water Recovery Rate	55-60 %
RO Capacity (Liter/hour)	2000-3000 (Liter/hour), >3000
Operation Mode	Automatic
Material of Construction	Stainless Steel
Number Of Filtration Passes	>5
Types Of Machines	Reverse Osmosis Unit
Number of Membranes in RO	4
Automation Grade	Semi-Automatic, Automatic
Installation Type	Containerized Plug & Play, Prefabricated
Application	Drinking water
Capacity (litres per hour)	4000 lph
Min Order Quantity	1

FAQ:
Q: How to buy your products?
A: we need some essential information include sewage sources, sewage quality ( COD, BOD,SS),Required Filtered water quality, designed technological process, site engineering conditions (contact us for details),then we will design the uitable solutions for you and prepare to give you best price.

Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.

Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.

Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.

Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
